Sony LCD Production Monitors

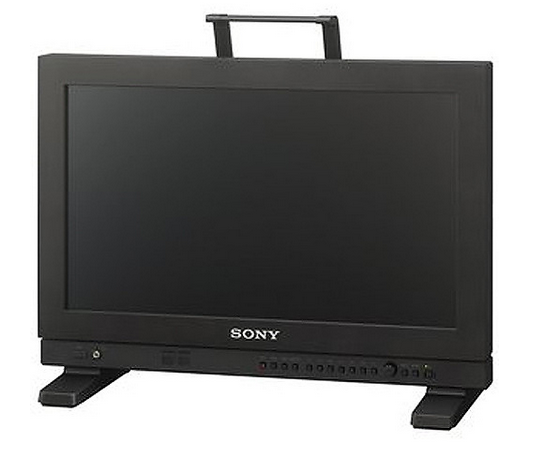

Sony LMD-B170 17" Full HD LCD Monitor - $2049 - special order - takes about 10 business days
Sony NAB Demo $1500 - very limited stock
- Industry standard 17” screen size and Full HD resolution, 1920x1080
- Sony's entry-level broadcast monitor; same menu structure as the Sony PVM-A and LMD-A monitors
- Front stereo speakers; 100x100 VESA for wall mounting; supplied stand for the 17" can tilt!
- 4 Pin XLR for battery power option (DC 12V-17V, 2.7A to 1.9A), 38w power consumption
- Safety area markers, WFM/Vectorscope, audio level meters, timecode display, focus peaking, side by side (SDI only) , flip, on-screen tally
- INPUTS: SDI x 2, HDMI x 1, Composite BNC x 1; Mini-Jack for audio
- OUTPUTS: SDI x 1, Composite BNC x 1; Mini-jack for audio, headphone mini-jack
- Viewing Angle: 80/60/80/80
- Dimensions: 16 3/4" W x 12" T x 2 3/4" D; Weight 13 lbs/6 kg (with stand)

Sony LMD-B240 24" Full HD LCD Monitor -$3100 - special order - takes about 10 business days
Sony NAB Demo $2600 - very limited stock
- Industry standard 24” screen size and Full HD resolution, 1920x1080
- Sony's entry-level broadcast monitor; same menu structure as the Sony PVM-A and LMD-A monitors
- Front stereo speakers; 100x100 VESA for wall mounting
- 4 Pin XLR for battery power option (DC 12V-17V, 3.2A to 2.0A), 41w power consumption
- Safety area markers, WFM/Vectorscope, audio level meters, timecode display, focus peaking, side by side (SDI only) , flip, on-screen tally
- INPUTS: SDI x 2, HDMI x 1, Composite BNC x 1; Mini-Jack for audio
- OUTPUTS: SDI x 1, Composite BNC x 1; Mini-jack for audio, headphone mini-jack
- Viewing Angle: 89/89/89/89
- Dimensions: 22 1/4" W x 14 7/8" T x 2 3/4" D; Weight 14.5 lbs/6.5 kg

Sony LMD "A" Series Monitors

Sony LMD-A170 17" Monitor v3.0 - $3499 - special order - takes 10 business days
Sony NAB Demo $2000 - very limited stock

Sony LMD-A240 24" Monitor v3.0- $4699 - special order - takes 10 business days

OLED quality without the OLED price. Same colour rendition as the famous Sony OLED monitors. And with its wide colour gamut, the LMD-A170 and A240 displays colour reproduction that are close to that of the Sony master monitors such as the BVM-HX310 - at a significant lower price.

- Color Spaces: REC 709, ITU-R BT.2020, DCI-P3, S-GAMUT, S-GAMUT3, S-GAMUT3.cine, sRGB, Adobe RGB, S-Log2, S-Log3
- 2K (2048x1080) can be scaled into the 1920x1080 screen (will be letterboxed)
- Anamorphic image conversion - correctly displays horizontally squeezed SDI signals
- Waveform, vectorscope, side by side, audio level meters, false colour, focus peaking, grid display, flip, time code display, safety area markers, closed caption display, on screen tally
- Viewing Angle: 89/89/89/89
- INPUTS: SDI x 2, HDMI x 1, BNC Composite x 1; Mini-jack for audio; Ethernet
- OUTPUTS: SDI x 2, BNC Composite x 1; Mini-jack for audio, headphone mini-jack
- 17" Battery Power Option: 4 pin XLR, DC 12v-17v 3.6A-2.5A, 49w power consumption
- 24" Battery Power Option: 4 pin XLR, DC 12v-17v 3.6A-2.6A, 51w power consumption
- Dimensions 17" - 16 5/8" W x 12 3/8" T x 2 7/8" D; Weighs 11 lbs/5 kg (with monitor feet width is 6.5")
- Dimensions 24" - 22 3/8" W x 16 5/8" T x 2 7/8" D; Weighs 17 lbs/7.6 kg (with monitor feet width is 6.5")
