Updated Apr 18/26
PTZOptics Accessories
Scroll down to see all options.

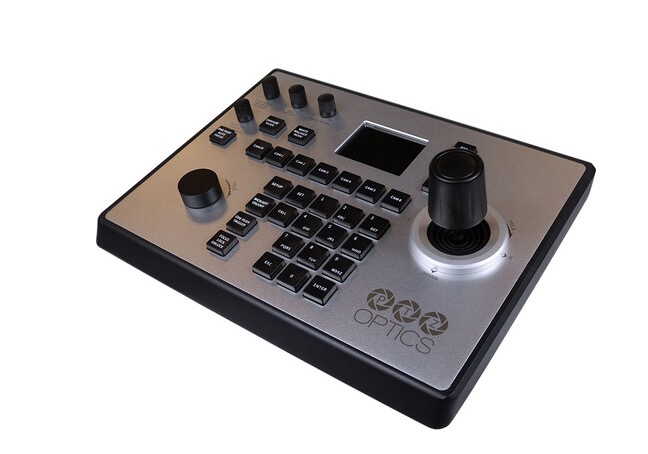

PTZOptics PT-Joy-G4 Joystick Keyboard - Reg $1450 Display Model on Sale
$1199
4th Generation IP or Serial Controller.
- Serial & VISCA-over-IP Controller
- Control up to 255 PTZ Cameras
- For All PTZOptics & Other VISCA Cameras
- Customizable Pan/Tilt/Zoom Speeds
- 255 Camera Presets, 9 Quick Presets
- Focus, Iris & Zoom Control Buttons
- Focus Lock/Unlock Control, PoE Support
- Exposure & White Balance Control
- Camera OSD & Large LCD Status Display
- Import/Export Settings via LAN
Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button. A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments. For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.
With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:
- Operate cameras in basic, matrix and normal modes
- Access cameras and quickly recall preset locations
- Control white balance, red and blue gain, shutter speed and more!
- Use web-based and smartphone app control for added flexibility
- Connections: RS-232, RS-485, RS-422, RJ-45 Power 6W (12VDC) / PoE (802.3af)
- Max Cameras
- 255 cameras via network
- 7 cameras via serial VISCA
- Recommended Max Distance
- RS-232 / RS-422: 50 ft (15m)
- RS-485: 3,937 ft (1200m)
- Ethernet: 328 ft (100m)
- Baud rate 1200 ~ 19200 bps Dimensions (mm.) 303.23 W x 234.95 D x 107.95 H
- Weight 4.45 lbs (2.02 kg)
- Dimensions (in.) 11.938 W x 9.25 D x 4.25 H
